WARNING
Operating the Service Tower is only for certified Pio Super Users. Please contact your manager to determine who can perform these steps in your company.
The Service Tower is designed to lift robots on and off the grid. This process is required when:
- adding or removing booster robots
- swapping bots for service and maintenance
The video and the steps below provide a quick overview of how to operate the Service Tower using the Control cabinet. For full details, please refer to the AutoStore Operation manual.

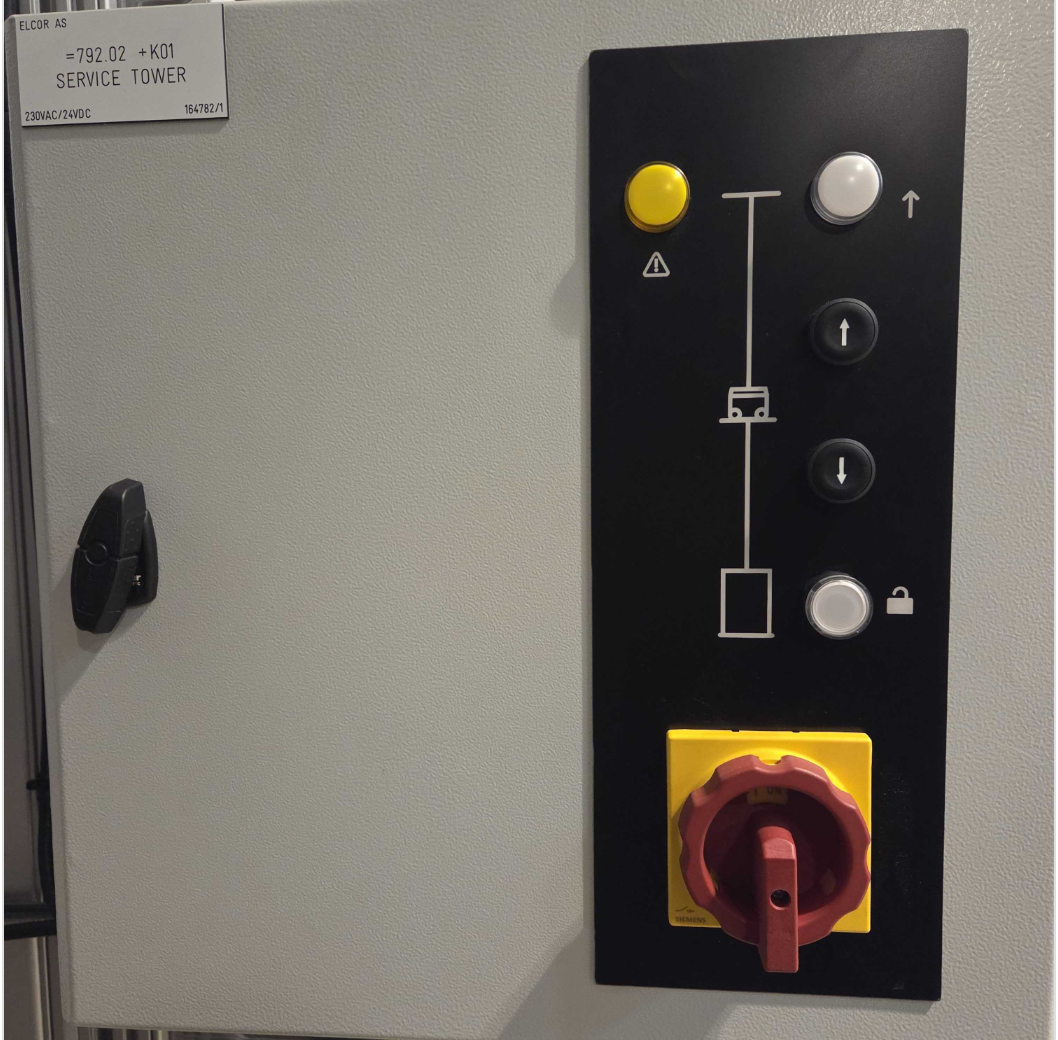

Service Tower control cabinet
The control cabinet is installed on the wall of the Service Tower and includes a panel for operators to control the lift and open the doors located at the bottom of the tower.
Buttons
Two black buttons with up/down arrows to operate the lift.
One white button to unlock the robot door and the side hatch.
Signal lights
Yellow light indicates a system warning
White light indicates when the lift is ready in the top position
Power switch
The red power switch at the bottom is used to connect/disconnect the cabinet
NOTE
Operating the lift requires the system status to be in mode Service or Running.
